Year 2 capstone project showcasing the design and development of an autonomous box cartoning machine using embedded firmware, pneumatics, and custom wiring. Includes CAD models, wiring diagrams, and final build photos.

Development

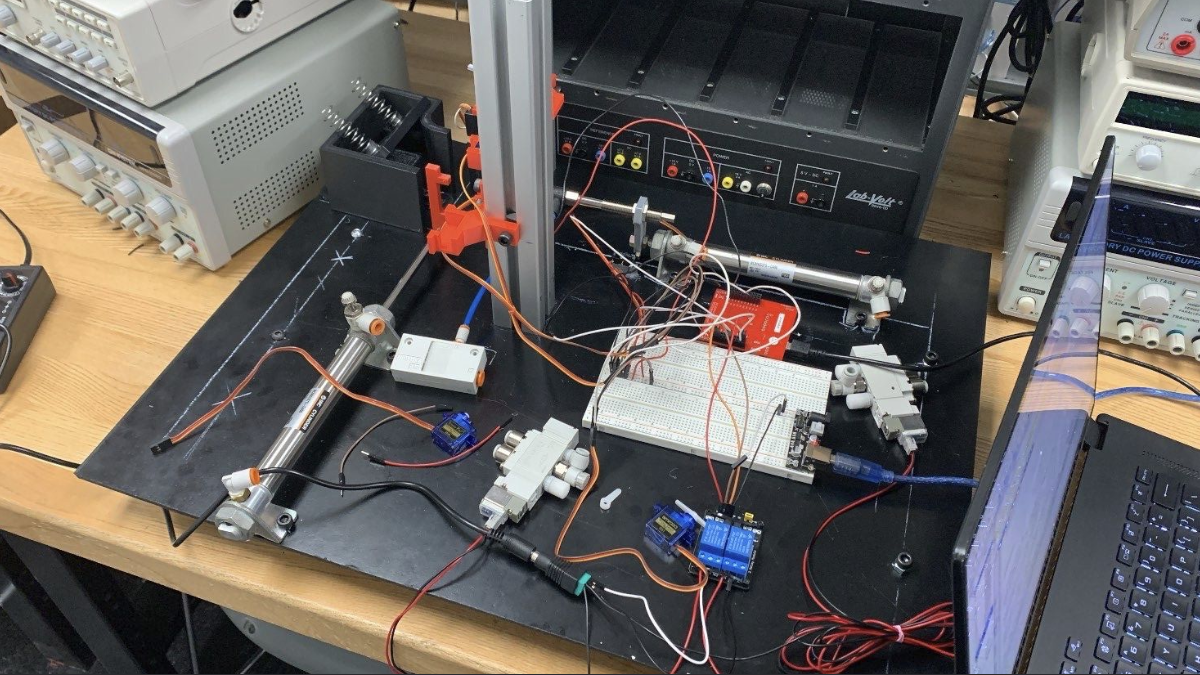

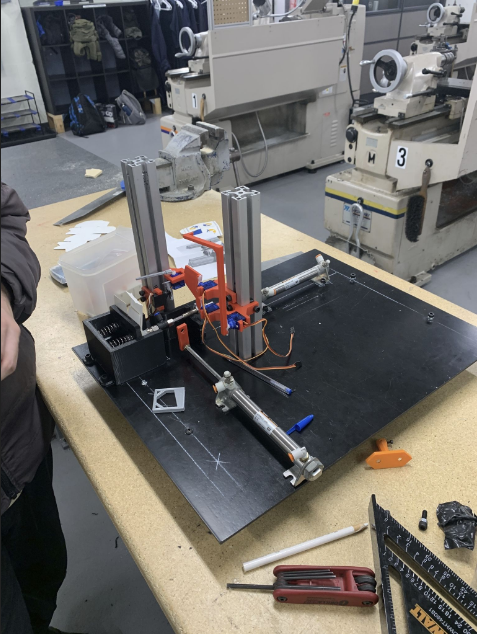

System at various stages of development

CAD Models

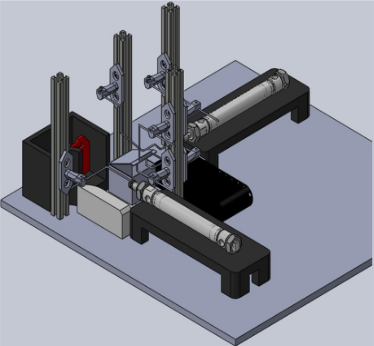

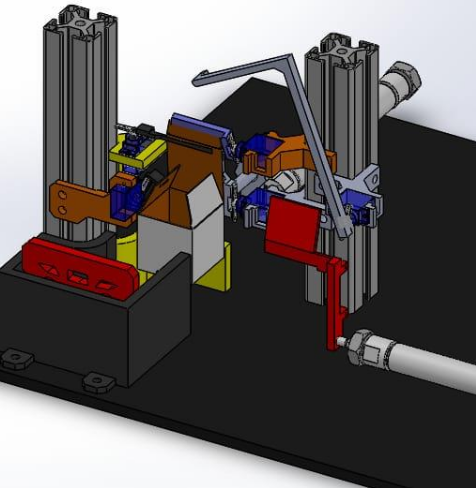

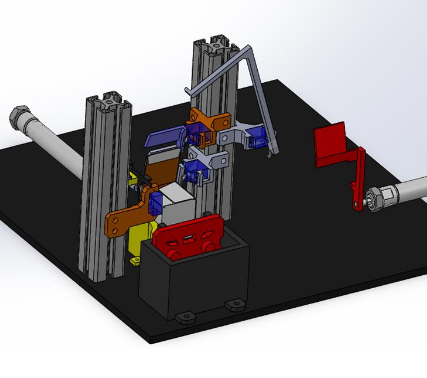

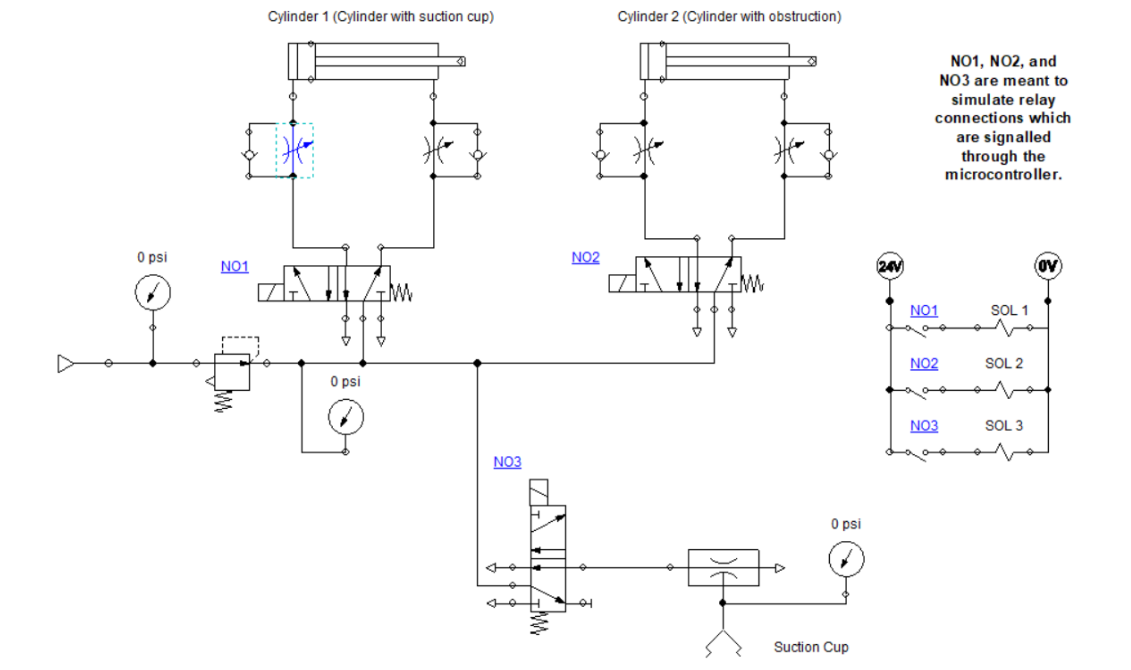

First CAD design Automation Studio diagram Final model Alternate final model

Diagrams

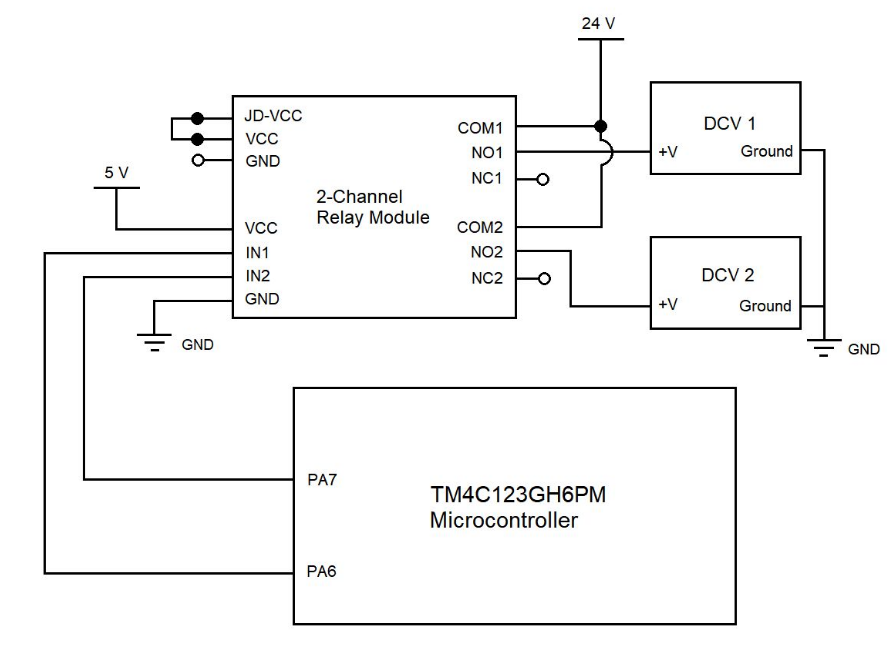

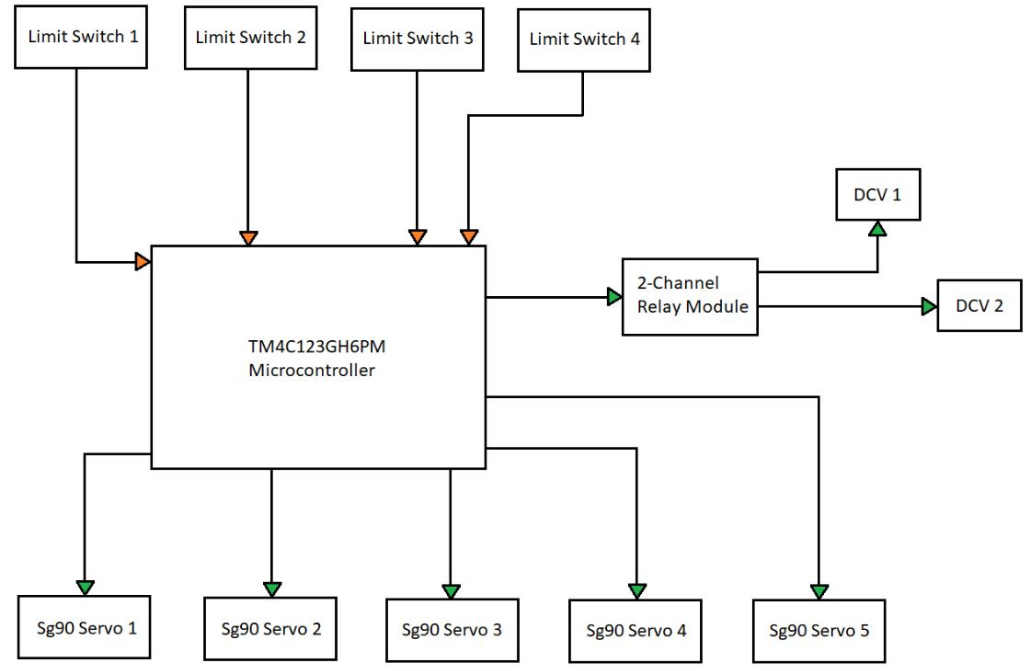

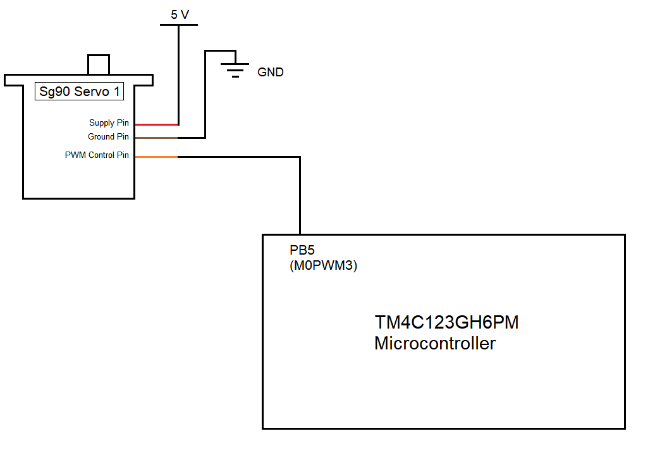

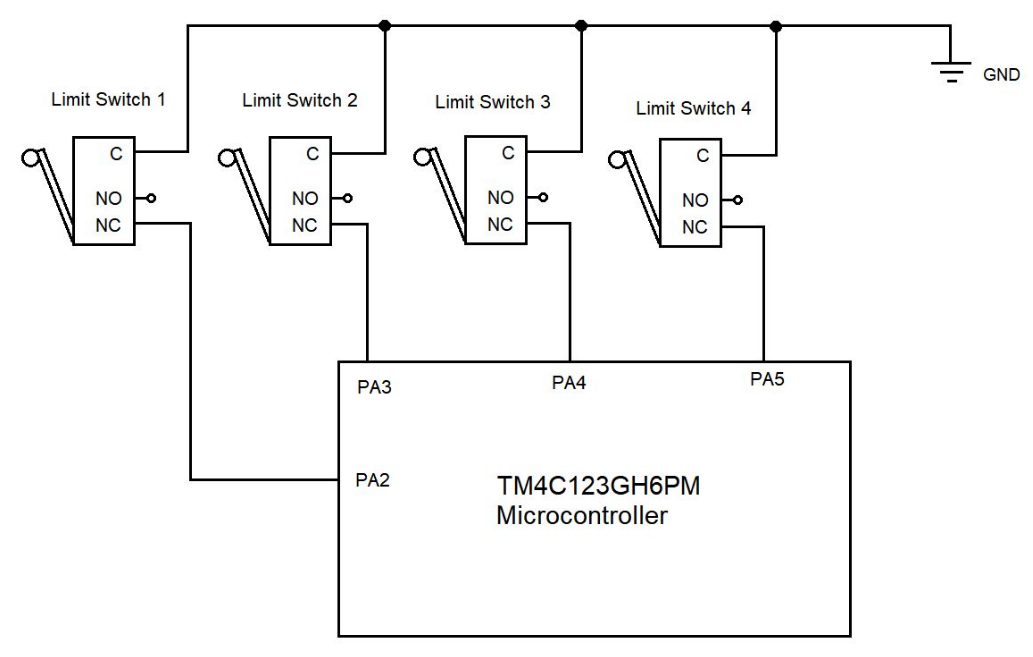

system block diagram Limit switch wiring diagram Relay/solenoid valve wiring diagrm Servo motor wiring diagram

Control Flow

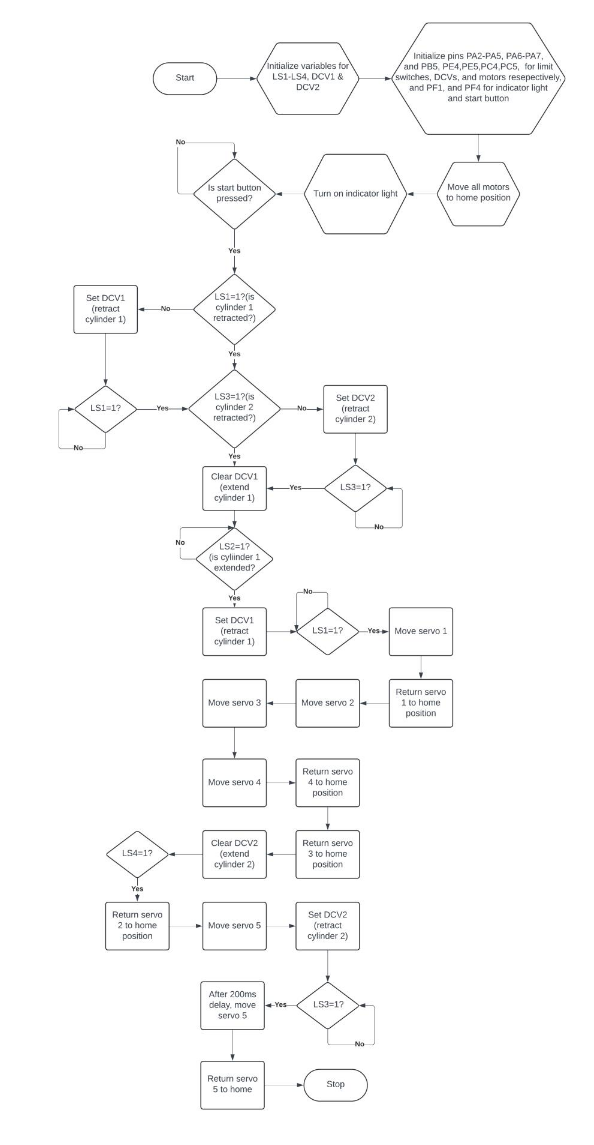

control flow chart
